Ah, the Country Life.  Yessir, if you live in the Big City, it’s a dream.  Why, just imagine! Eating fresh food out of your own garden.  Pure country air.  No traffic noises. Low stress.  Ultimately relaxing and rewarding….

Well, no.  Not exactly.

During our ShopTalk Sunday adventures will tell you the upside – and the downsides of life in the East Texas Outback.  Sure, taxes are low – totally low.  But, we’re a gen-u-ine USDA farm numbered place out here. We raise trees that your printers may eat.

Lots to go over today, so let’s start with the 3D…

Printer Debacle

With spring definitely here (we hit 80F at wine-time Saturday) it was time to roll along pending projects out in the “personal wild-man prototyping shop.”  Time to take the dust covers off the 3D printer line…

All winter, Ure has been pecking away at “specials” on filament sales on the Zon.  Figuring between my old tool restorations and new projects for around here, to say nothing of light crown and speed crown changes, it would be marvelous to start printing the future.

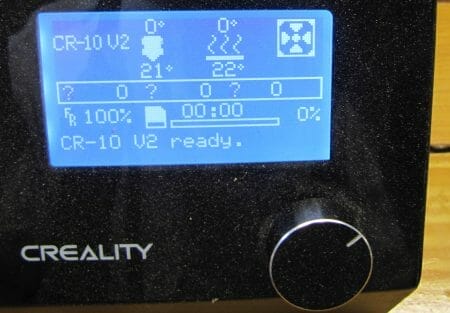

The printer I use most is a large bed (12″ x 12″ x 15″h) Creality 10 V2.  It has been reliable and simple enough for even an old man to deal with.

The workflow is simple:  Sketch something up over on TinkerCAD.com.  A little work will allow you to drag and drop shapes that, in turn, can be placed, moved, grouped, extruded, and all that.  Which can then be downloaded to your PC.  Where you can whip them into Ultimaker CURA where the .STL (stereolithography file) you just downloaded from TinkerCAD is “Sliced” into something your printer can “eat”.

The idea is when properly fed, anything you can think can be resolved into an object out here in the nominal real world.

There’s just one problem.

Printing is Slow

Which drove me to pop for a $75 super-cool sounding new “Spider” printing
hot end.  Step over to the printer and I’ll show you the moveable box (blue) which squirts out the molten plastic while it moves side to side.  Over a table that moves back and forth.

Inside the blue box what happens is the printer filament comes into the top of the blue box through what’s called a Bowden tube.  Which is pressed by a feed mechanism off to the side, down into the “Hot End” of the printhead.

The Spider 3 allows you higher temperatures (Oh boy! Printing carbon fiber!  Yee haw!) and speeds that are considerably faster.

Like a Damn Idiot…

I began to follow directions. Remove the printhead assembly by unscrewing 3 inaccessible (from the front) screws holding the printhead onto this plate on the gantry.  While you’re considering this, a round of applause would be nice because Printer Alley at Ure’s place was built so I could walk around behind the printers to address maintenance issues like this one:

After unscrewing things (Allen wrench screws galore) you eventually get the printhead opened up:

At the top of the assembly (on the left, since it’s laying down, right?) you can see where the Bowden tube feed comes into the heating element. Then, after gap on the right at the bottom of the finned metal part, you see the heating assembly which also has a thermistor in it.  This is what controls the print temperature.  (PLA likes to print about 220C and ABS more in the 240C range.)

Confidence was spilling all over the place by now as I open the box and set the new hot end by the old one.  Just a quiet voice telling me “Save the confidence for later…”

WTF!!! They don’t have the same form factor!

“Aw shit.”

Literally, now that I had the printhead disassembled, I had no idea (other than printing a new, different style of printhead, on the smaller Ender 3.  But, no.  For $75-bucks, I wasn’t going to screw with it.  Time is money and at some point (even in flying) you get down to “decision altitude.”  This was “decision altitude” on this project.

“One hour penalty, replay the down!”

A shout-out and “thank-you” to Martin in Amazon Customer Support.  Justin, my UPS dude should be by with a call tag for the non-fitting part Monday.

Lessons?  Sure.  Will I follow any of my own sound advice in the future.?  Probably not.  So, I won’t bore you with it.

Spring Sprung

Long as we’re in show and tell mode:  Another victim of the ice storm came down out by the road this week.  Here’s a one man, one tractor, one saw half-day of work to get down to the burn pile:

Don’t tell me “That doesn’t look so big.”  Because I’d be inclined to snarf that “Yee of little sawyering knoweth not of which you blow…”  Those posts in the foreground are on 8-foot centers to help you scale it. And the tree base is 20-25 feet back from there… go easy, cowboy.

Yes, cutting up a tree like this is work if you have to cut it into smaller lengths and drag it a block or two to the burn pile.  Age is not a factor.  This is a raw “time on task” project.  Toss in writing a column and usual household chores, yeah…burns another day.

Burn Pile Central

Buddy up the hill from me has not two but a total of 9 HUGE burn piles similar to mine in size.

He dropped by this week, and we roughed out “mutual aid” plans for burning. He’s got a rig lashed up so he can fill 1,000 gallons of water from the creek and coupled it to a 10-horse (or so) big-ass trash pump.  “Tell you what, bubba: I can put an inch and a half solid line of water out 75-100 feet to that pine over there…”  Kick-ass rig.

Not that I’d move 4-tons of water with a pickup, but in the Outback, it works.

By the way – gave him one of those “handee clamp” whizzies.  Since he works on machinery at the local poultry processing plant – everything is stainless – says it will be a great help.  The magnetic “finger” whizzy is good, too.  Just not worth a damn on good stainless.  Handee Clamp is metal-agnostic.  Working on ATVs, though, magnetic finger is dandy.

Solar Rework

Planning on 2 or 3 days to fix this rannygaboo*:

[*Rannygaboo is the firehouse pronunciation of rannygazoo which is too old-school, even for us out here on the pogey.]

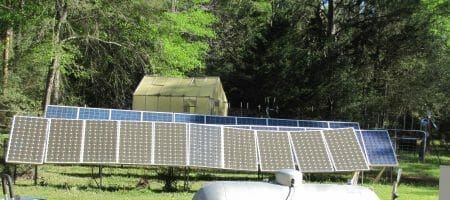

See how the 2nd and 3rd panels in from the right side are sagging?  What happened is one of the rails I had welded on top of T-Posts finally failed.  Considering I tossed it all together over 2 manic days back in 2008?  Lemme think: that’s 15-years and a single weld break.  But, gotta be fixed. Cheap rebar or not.

This is where spring is headed.  I’m still trying to “Tom Sawyer” Elaine into “enjoying the riding mower.”  Got the cranky carb/starting issue resolved, now we’re back to the cranky operator problem.

(Elaine doesn’t understand my occasionally calling her Huck.)

Shopservations

Let me get out the list – a lot to go over today.

Speaking of Mowing:  Leave your old mower blades on in the Fall.  I know, lots of home handy bastards want to put on new blades and wax the mower up to get the year off to a good start.  Unfortunately, that’s all bullshit.  The first mow of the season is when you’re going to hit every twig and pinecone Ma Nature has puked into the yard over the winter.  F**k that.  Use the old blades.  After two mowing’s, bury anyone you’ve run over, sell the scrap metal you’ve hit, and THEN put the new blades on.  You’ll have a better yard by mid July, I swear. No forensic evidence is a bonus.

Annual Gas Mix Debate Finals:  We’ve got them scheduled for late April. Ure’s house blend is a simple mix of Ethanol-free (Murphy stations at Wal-Mart, blue handle pumps) and a shot of StarTron.  My buddy The Major runs Tru-Gas (or other ethanol free) and then he adds Sta-BIL, Lucas Upper Cylinder Cleaner, and Marvel Mystery Oil. Says the Sta-BIL can be omitted if you are storing 4-months, or less.  Mix 5-gallon amounts of each into a single 5-gallon jug.

To his credit, the “Major’s Secret Formula” kept the inside of his 1990 Husqvarna chainsaw going from 1990 to this year.  And the tech was amazed at the condition of it.  Reason he’s not still using it?  Husqvarna no longer makes parts for it.

I tried MMO in our plane for a few tanks, but didn’t notice any change in performance.  My (late) CFI pal put it in his Mooney Ranger and swore by it.  I – being a contrary cuss – did the research and went with AvBlend in our old Beechcrate.  Aircraft Owners website has a definitive no BS article over here to take a look at: Airframe and Powerplant – AOPA,

Oil is as big a factor in long engine life, so we tend toward Royal Purple or a top synthetic and then add CamGuard to that.

Shop A/C Service:  On this weekend’s list here is the annual pressure washing of the two window mounted air conditioning units in the shop and office.  Idea is to get the leaves (*and other shit) out before cooling season shows up.  If I get it on this weekend’s list, it should be complete by, er,, sometime in May…

Green-Friendly BBQing

Last note for the morning:  Told you about our new outdoor Broiler.  Still “just” $199 at the Zon.

Been cooking up a storm on it, but forgot to sing its praises about fuel efficiency.  I figure this broiler will cut our overall propane costs by more than 50 percent.

See, with the broiler, it gets hotter’n hell in less than a minute.  Starting steaks on top and moving then down an inch or two and even Elaine’s M/W steaks are done in 6-minutes and charred all “Big City Classy-like.”  Mine are done more like 4 minutes – 2 on a side. Resting time is as long as cooking time.  If I’m not hungry, lol.

That’s a hell of a lot better fuel proposition than a 20-30 minute warmup on a BBQ grill.  Don’t get me wrong, we like the TruInfrared and all.  But, until I axed the factory regulator and put in an adjustable, flamethrower grade regulator, it would NEVER get to 500F hood temps when it was 30F outside.

I still like the BBQ GRILL OK, don’t get me wrong.  Hard to rotisserie in the broiler (I’ve been noodling on that).  But wowzers,  Makes instant steaks just fine.

HELP WANTED:  There is always “just one thing” in such brilliant solutions.  When I spray the stainless grills with EVO prior to broiling, they get this dark “goo” baked on.  Probably wouldn’t hurt to leave it there.  We’ve tried a little bit of everything to get it off.  409 and a ScotchBrite pad is one way.  80-grit on a palm sander (and a hand wash after) works, too.

But if you have found the “silver bullet” for removing baked on stains from stainless grills, please feel free to reply.  Doesn’t make a big difference, but just an appearance item on my checklist.

I’m the guy who always had the perfectly coiled mooring lines, in our sailing days.  OCD is good because it’s the source of energy to get you somewhere in life.

Write when the speed crown kicks in,

George@Ure.net  (can you tell?)
