ShopTalk Sunday: We’re Hosed – Reel-ee

by

Here you thought the Pun Police would have the weekend off.  Nope.

Our silly and small project of the weekend is assembly of a hose reel for up at the greenhouse end of the old place here in the woods.  In addition to 100 feet of that semi-fancy stainless hose that promises to be less kinky that prime time news, I also picked up a hose reel.  Which – natch – needed to be assembled.

What better place than on the Chop saw?  My major radio parts sorting operation has every other square foot of space utilized for sorting.  Thus, out of the box and “We see what we saw…”

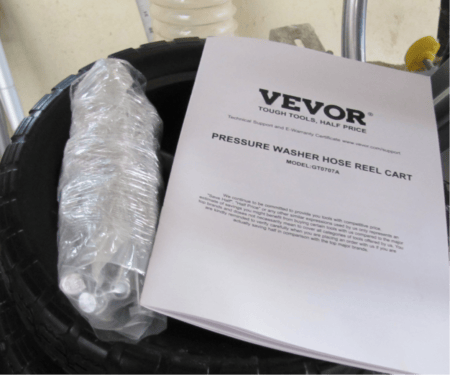

The tires are plastic, the metal is “powder coated steel” and while pondering the parts pile, I noticed instructions!

We almost didn’t need them.  Far from rocketry.

You begin putting in a cross brace and an end.  Into which go two axels and then two tires with washers and cotter pins, like so with two more oppposing:

The Cotter Pin Lecture

We have two points of Home HandyBastards Assembly Training to be covered this morning and cotter pins are our first stop. Cotter pins, are in this hose cart assembly above, are a marvelous way to old lots of assemblies together.  Before metal, wooden pins (we speak spokeshaves) were sometimes used to hold items together. But we wouldn’t have the industrial appreciation for cotter pins until a machine to make them was invented just after the turn of the last century.  The story is told on the Western Wire Products website.

“In 1912, the family inventor Ira J. Young applied for a patent on a machine for forming split pins, later to be known as Cotter Pins. He manufactured Cotter and Split Pins under the name of Wire Manufacturing Company and soon sold his interest in this company to his brother, Harry M. Young and Alvin L. Bauman, a non-family member who was a partner. The Wire Manufacturing Company’s assets were transferred to Western Wire Products Company, which had been incorporated on February 26, 1914. Being in bad health and knowing death was imminent, Ira Young transferred his shares of Western Wire stock to his brother, Harry M. Young. On November 28, 1914, Ira Young died at age 33.”

Damn shame he died, too, since great inventors are hard to find.  Between cotter pins – and the earlier screw machine – the world was set for mass industrialization.  We found elsewhere…

“In 1861, an innovation that would forever change the landscape of manufacturing was born—the first automatic screw machine. Patented by Brown & Sharpe in 1865, this marvel of engineering was not merely a machine; it was the harbinger of industrial efficiency.

This was from the Hi-Standard Machining site and from reading their history a bit, you can see what was happening in the opening decades of the last century:

“The evolution from a single-spindle to a multi-spindle screw machine post-WWI marked a significant leap forward. Imagine a world where a single machine, once capable of delivering two products simultaneously, transformed to empower manufacturers with the ability to produce six-fold, all thanks to the ingenuity of the multi-spindle design. This wasn’t just about quantity; it was about revolutionizing efficiency. Multi-spindle screw machines became synonymous with unparalleled production speed, heralding a new era in high-volume machining.”

You have to wonder sometimes what the world would be like without the prodigious types of screws – and cotter (and lynch) pins that over run our shop.

I am still trying to find an automated alternative for screw sorting. OilMan2 sorts while watching (mindless) television. I’ve built some sorting containers with fancy boards to feed ’em, but nothing really satisfying, yet.

Back to point, the proper bending of cotter pins varies by trade and tradesman.  As you can see, I did a 90 degree turn on one leg of the pin. This is fine if the pin is not where it can snag you.  However, in the aviation work I’ve done, it’s considered “right” to give a cotter pin a pair of bends on each side.  This way, the (sharp) end is turned in on the rod or axle it is attached to.

Some people prefer the “Y” use of such pins, particularly because “Y” pins are faster to disassemble hard right-angle bends which will usually need pliers.

Oftentimes, though not in aviation (where there’s a spec for everything) there’s no one “always right” solution. Shade tree mechanics will generally grap both the tails and twist them to one side at 90, but there’s very little art to that.  You can still get snagged on those.  The aviation style (four bends per pin) (also suitable for generators and other rotating assemblies) is more professional.

Finally, cotter pin bends will depend on shop conditions while working.  Since I got a late start Saturday, the shop was a humid 92F.  Which I didn’t give a tinker’s damn about the arty cotter bending when I’m pouring off sweat like the Rio Grande at flood.

Need more Minutia?

The second part of “fine craftsmanship” comes in assembling the little wire basket on the hose reel.  The instructions aren’t particular – put in a bold and washer on each side, then tighten the nylock type nut and be done.

Again, though: Pappy Ure insisted that I always “Stop and think about how you’ll be using something.”  In this vein, then, it becomes clear that there is only one way to assemble the bolt for the basket. Because?

I can almost hear Pappy explaining it:

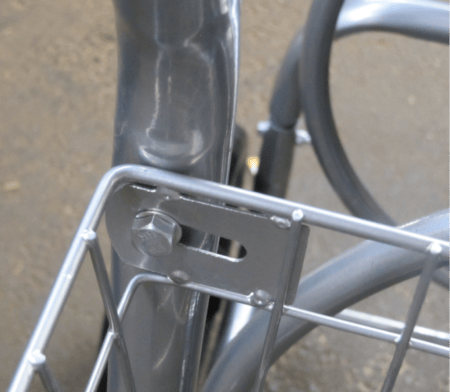

‘No matter what you’re assembling, make it so when people go to put their hands around it, they won’t snag their fingers or clothing…”

With the head in there’s much less chance of catching something on a bolt that sticks out 1/2-an inch.

(I did tell you these were fine points of workmanship, right?)

Now we can move along to bolting the rest of the project together and loading it with a fresh 100-foot roll of stainless-steel hose:

All that remained was to hook it up outside after putting in the best hose washers I’ve yet seen.  This is a $57 and change  hose reel on Amazon, but Vevor didn’t chintz on the hose washers – some of the best I’ve seen.  Good silicone and very flexible and good sealing.

Tool Of the Week

I keep running into a problem out at the welding table.  When cutting down odd scraps of steel (to make corner gussets, for example), the small parts are a bear to work with a 4-inch plug-in grinder.

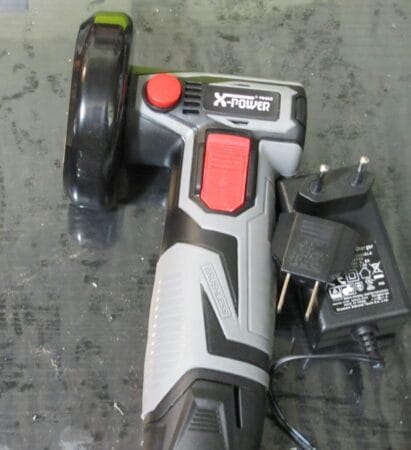

The solution comes in two parts, one of which is a small rechargeable push-grinder what was about $50 bucks.



If you have sharp eyes, you’ll see that is an Asian & Europe plug, but an adapter was included which was a nice touch.  A 50-pack of cutoff wheels will ser you back about $20, but for the convenience of not firing up the compressor for the other push grinder or winding out the retractable power cord for the 4″ high-power grinder, it looks like it will do the job on, oh, 1/8th inch steel and some of that smaller work.

Just too damn hot to get out and do some test welding, but there’s a new class of handheld welders out that do basically what a stick welder does.  I bought one of these last spring, and haven’t had time to play with it, or get around to mounting a work vise on the welding table, either.

One other thing to toss out there is the idea of buying one of those Evolution slow-speed carbide steel saws.  They seem like a better idea than abrasive saws, but in either case you’re still going to want an N95 – or better an N100 mask- because abrasive is not something you want to get in your lungs.

One for the Road

We are getting great “financial pleasure” out of our latest updated solar panels which has boosted our output considerably over the old panels put in back in 2008.  Notice the year-on year change: $453 last July vs. $230 last month and this month we are on track to run about $250 (maybe less) vs. $497 last year: With one week left in the billing cycle, already a home run in view.

The easiest money to make is the money you don’t have to spend.  Got a ShopTalk project in mind for next spring to see what kind of power savings could be had from hanging white shade cloth from the gutters (or under the eaves) to eliminate sunshine on the sunny sides of the house.

Might not be pretty, but honestly, green looks better to us.

Write when you get rich,
