ShopTalk Sunday: The DIY Battery Charger

by

Prepping note: The battery on the old Kubota is on its last legs.

It’s a 51-R series, and they ain’t cheap.  So, I was trying to get the maximum possible service life out of it.  Put it on an 8-amp charger and then got into some pulse charging on top of that…

Even after 2 days of pulse charging, I wasn’t sure of what was going on because I’d dropped the tractor hood too fast.  And OLED displays are not especially fond of that:

Which makes that one unusable.

So far, the winning “farm battery charger” is an old Sears/Craftsman unit that’s been around since 2004.  It works and it will even start the tractor, battery or not.

Second place used to belong to a Schumacher charger, but after serial charging of a battery that one literally overheated and smoked a bit.  So, roll-my-own charger went on the project list as a possible fixit project.

As usual, though, this kind of mass-produced unit is not “repairman friendly.”  And given that U.S. imports from Asia are beginning to crater [see L.A. (-41.19%) and Long Beach (-34.7%) cargo disasters in progress] we – ‘Merica – as a “shining light Beacon of Freedom to the World – are in a world of poo.

Because not only is Freedom of Speech between a rock and a hard place, but so is User Maintainable Anything.

My battery charger experiences recently have made it clear.  I need to “go deep” on some of the farm equipment that is most likely to fail.  So, another one of the small 8-Amp with pulse charging units has been ordered from Amazon for under $25.00.

Now I’ve gone one step further.  I’m going to whip up my own battery charger which ought to give reasonable performance at the modest price of having to pay attention to what I’m doing.

George’s Battery Expertise

Once upon a time, down the resume a way, I was head of sales and marketing for a company called Cruising Equipment in Seattle.  The outfit made dandy kilowatt-hour integrating microprocessor-based DC power instrumentation.  They also make multiple-stage charge controllers, as well.  In short, what I’m going to tell you can be taken to the bank.

Batteries have Input requirements (that is, charging) along with Output requirements (discharging). Do either one wrong or disappointment will appear.

Battery Capacity and Discharge Profiles

For our discussion, we will use a “generic” battery which might look suspiciously like a Trojan T-105 6-volt battery.  Now, turn to the spec sheet over here and scroll to the charts top of page two.

The one on the left presents a logarithmic chart explaining how “effective battery capacity declines as a logarithmic rate as the rate of discharge increases.”  Notice in this chart you can withdraw 100 amps for 100 minutes.  But as the rate of discharge increases, capacity drops.  Such that at 200 amp discharge rates you will get about 20-minutes (or less) of discharge rate.

Depending on market, batteries are rated at their cycling depth of discharge rate.  Forklift batteries tend to us the 6-hour rate.  The T-105 generalizes at the 20-hour rate as do most other consumer-oriented batteries.

What’s more, there is a cycle-life every battery has.  And if you regularly use no more than 50 – 60 percent of a battery’s capacity, its “cycling life” will be generally in the thousands of cycles.  Particularly if you perform periodic conditioning (“EQUALIZING”) charging.

There’s a trade-off between lead-acid and newer technologies like LiFePO4.  This latter is a lithium battery.  It cycles better, has higher power density, and can be deeply discharged to near zero without killing cycle life.  Stays in the thousands.  But there’s a tradeoff.  Besides a LOT more money? Very temperature sensitive.  Like disconnect chargers when you get to freezing and don’t charge at any more than about 12.6 volts.

Higher current under load (motor starting or running a microwave at the deer camp).  But LiFePO4’s will beat the shit out of your wallet.  I love Trojan T-105 style batteries (golf carts) because they deeply cycle well, and while they require some maintenance (periodic watering and equalizing) in our Solar operation here, we get 8-10 years out of a set of 16-batteries of the golf cart type.

Charging Parameters

There are four “stages” to battery charging:

  1. Bulk Charging: This is when your source (alternator, charger, or genset) is putting out all it can.  For consumer chargers the bulk limit for small chargers is in the10-30 Amp range.  Once you get to the $90 class charger, bulk charging at the “Starting level” shows up.  For liquid cells, battery size in Amp-Hours approximates the “economic” maximum source that’s useable.  E.G. for a single 100-Amp-Hour battery, more than a 100-amp alternator may be inefficient.  At this level, the battery may be as low as 10.6 volts, or so, on a deeply discharged system.  As the Bulk charging process goes along, the voltage will slowly rise.
  2. Acceptance Charging: This phase is also called Bulk Charging by some manufacturers (like Trojan).  Essentially, after running flat out to bulk energy into a battery, you get to a limit of “acceptance” above which the battery may be driven into gassing.  (“Boiling” isn’t correct, since electricity is breaking down hydrogen and oxygen and blowing off (highly explosive!) Brown’s Gas.  Charge liquid cells any harder than this and you risk inadvertently gassing the cells which increases water use.  Once a charger is operating at less than its ultimate output current limit AND the Bulk/Acceptance charge voltage is hit, you can set a timer.  Because the battery CURRENT will slowly decline at this constant charging level until current is at (or below) 1 percent of stated capacity. Takes 2 1/2 to to 3 1/2 hours on the close. For a 100-Amp-Hour battery, this means when charge current is less than one amp and the voltage is still 14.82 volts (around 60-70F!) you can dump in more energy forever but you won’t get any return on your investment.  Electrochemistry tops out.

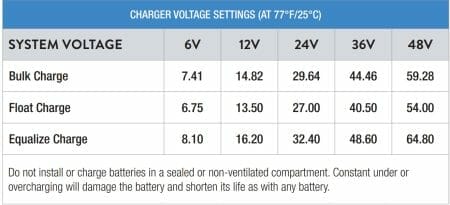

I’ll direct you to the first page of the T-105 spec sheet next.  For there, you will see recommended charging voltages for the general type.  Pay attention to the voltages because when using liquid cells, they are important.

Source Trojan Battery spec sheet retrieved 4823
  • Floating Charge: This is not “charging” in the pure sense of the word.  Yes, you are putting some energy into cells, but only to the extent necessary to keep them “topped up.” Holding voltage.

Temperature Matters

All of these voltage measurements are referenced around room temperature.  When it gets cold?  The Acceptance Charge can move up to 15.5 volts on a nominal 12-volt system around freezing outside.  On the other hand, if you’re in Phoenix, 12.8-volts may be pushing it.

Charger-Gaming

One of my Schumacher chargers is toast (over heated, over-used), but a smaller one used all winter in the lean-to greenhouse did OK, though it did experience a couple of overvoltage conditions which dropped the diesel heater offline.

For now, I’ve got this still working charger, and the old-time Sears unit, plus the new pulse charger, so we should be good.

What I’m doing now, though, is sketching out a “George Made” unit that will arise from this pile of parts.  Pay attention and I will walk you around the design concept clockwise starting with the silver big power supply box on the left here:

  • The basic power supply does 10 Amps and has a built-in voltage controller. It will go all the way up to 48-volts. Amazon $40.
  • There are two voltmeters shown, but only one of them will be used,  Likely the one with the Hall Effect transducer (white donut and wires) because that will give me voltage and current information since I’m making a totally manual unit. Amazon price $21.59.
  • The BoJack box has a few capacitors (2200 uf 25V) because I like really clean D.C.  If you plan on using this on 24V or higher systems, increase the capacitors to 100 volt types.  Amazon $6.99.  I’ll series two of them to get to 50-volts which will get me into 10 amps at 24 volts, no sweat.
  • A power switch is needed – and I might go so far as to use one of the Double Pole, Single Throw (DPST) types so I can get the A.C. line completely disconnected from the unit.

The next part of this project will be going through the “designer part.”  Which is where I look at airflow, consider insulation, where the AC wire comes in, where the charging wires will come out.  Banana jacks, red and black?  Hmm…

Then it’s a matter of sitting down in front of TinkerCad.com with a digital caliper and drawing up the enclosure.  With the 3D printer, I can draw the perfectly aligned square meter cutout and the ideally positioned with holes and cable gland holes just exactly where I want them.

In the end, I figure the out of pocket will be around $85-90 bucks.  Which is up in “another Schumacher” in terms of price.  But on the backside of an uncertain future that MIGHT include wonky grid and microprocessors in collapse, this semi-analog approach might be useful in situations most people will never encounter.

For one, since it is infinitely adjustable, I could put a couple of LiFePO4 batteries in the 100 Amp-hour range in parallel and use that to power the solid-state ham gear. Or be a little “stiffer” supply for the electronics bench.  (Though honestly, I seldom get anywhere near the 3-amp capacity of two power supplies there.

Notwithstanding, there are many things to consider here, not the least of which is the bragging rights and having a microprocessor-free power supply for whatever moves me.

Not the Last Supper

Thanks to the ham radio crew on 3806 this morning for a fine discussion of how to make perfect beef brisket.  We’ll be trying the ideas out this afternoon and to go with it, I’ll be doing a batch of our family’s spin on Cuban bread.

Toss in 16-ounces of cheapo jug wine and we will have zero risk of wasting away out here in the woods.

Write when you get rich, or a light bulb comes on…

George@Ure.net   (and Happy Easter!  Which reminds me to go find the bunny now…)
