ShopTalk Monday: Greenhouse Water Engineering

Greenhouse Development work continues at Uretopia as we wend into Summer.

To recap for newcomers, about two years back, son George II and I were messing around with Ground Screws and (in a flight of fancy) I decided to put up a greenhouse.  A lean-to against the Music Studio’s west (outside) wall, it seemed like a neat place to put in a survival garden lite.  It was close to the kitchen, water nearby, and so forth.

Then the Engineering Gene kicked-in.  After a very short time, it became clear (although we had suspected it from our earlier hydroponics sessions in the bigger greenhouse in the dirt garden area) the pH of the water from the local rural water outfit just wasn’t suited to high-output plants of the blooming sort.

The pH runs around 8.0 to 8.2 in the summertime and veggies like the high 5’s to low to middle 6’s in the blooming period.

Standards Have Changed

A note before today’s tale continues.  It has come to my attention that ratings of air conditioners have changed – this much after the facts of what I’m about to recount.  Most of us (over age 50, or so) remember air conditioners were rated quite evenly.

Today, however, there are two types of ratings.  As AI explains it:  While the ASHRAE rating gives the hard numbers of the BTU output, the DOE rating is more of a “real-feel” rating. This means you can be sure your AC unit is more accurately rated, which means better cooling and greater efficiency.”

Thus, even if you are a child – under age 50, or so – then close study of this article – ASHRAE vs. SACC BTU Ratings | Sylvane – will get you a long ways toward understanding how Ure’s normally careful calculations came up “10-degrees short” in the first iterations of this project.

Engineering Takes Over

After purchasing – but them having second thoughts about a small reverse osmosis system for the greenhouse (because of water waste in keeping the system going – about a 9:1 ratio of “neutral water” to even more alkaline blow-by) I hit on the old Rainwater Barrel solution.

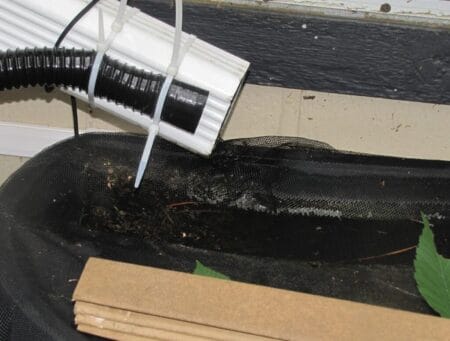

Two rain barrels and some gutter work – and the system was complete.  But laziness is ever-present. So, to end the daily hassle of filling up watering cans, I decided that putting in a modest 12-volt power system would allow all kinds of refinements.  For example:

  • A small-scale LED motion-activated lighting system could be installed.
  • So could a larger work light, or three.
  • Being on 12-volts also meant I could install use RV/Marine water pump. These don’t draw power until the pressure drops.  Automatic on-off is music to the Lazy Ure’s ears.  (I like to think of it more as “personal efficiency, however.)
  • This suggested that I add-in a good-sized lithium battery (100 Ahr’s worth) so I could water my plants with a metal kink-proof hose.
  • Two solar panels were added as well, to keep the lithium battery topped off.  And when the sun wasn’t sufficient, a high-quality charger (to float the battery of AC mains power) did the trick.

It all worked dandy, except for a half-dozen times in 2023 when we didn’t get enough rain to keep the rain barrels filled.  (Two of them, 50 gallons each, tied together at the bottom (a garden hose Y worked fine). A cup or two of vinegar brought the pH down to an acceptable range.

For summertime cooling – when it gets upwards of 110-115 in the greenhouse – we added a swamp cooler. But that kept the room moister than desired.

This year, we took out the swamp cooler, put in a portable 8,000 BTU air conditioner which is able (at present) to keep the greenhouse about 8-degrees cooler than outside air, best case.

There’s more to this evolving design – which we will get to later in this report – but for now, I wanted to read you in to how this all got evolving because it’s a fairly interesting story. Mission creep.

Making the Air Conditioner Better

The basic a/c unit (bought at a discount on a Prime Day was pretty good. But it has a glaring design issue.

See, when a compressor type A/C unit runs, it creates condensation on the coils.  If the unit were allowed to run continu0usly, the evap unit would ice up and there goes the cooling.

That is why most air conditioners “cycles” between regular air (to blow off the icing) and that icy cold air when the compressor is running.

It worked OK, but I wasn’t getting my money’s worth on the cooling because of the cycling.  In this particular unit, there is a “heat exhaust pipe”.  As the machine defrosts the coils, water is collected and evaporated into a 5 1/2 inch duct to outdoors.

A review of the manual reveals that you may improve the “on time” by getting rid of the melted water some other way.  Specifically, there was an included drain hose about 18 inches in length which was designed to go into a bucket.

When full, of course, this led to violation of Ure’s Lazy Personal Efficiency axioms.  We simply will not tolerate systems that require human intervention and work.  When we sold our old Beechcrate, for example, I had about had it with the manual (Johnson Bar) flap system.  It was like reaching down to pull on the parking brake of a VW Beetle, every time you wanted to land somewhere.

[Homework for New Home HandyBastards: Read over here on what Johnson Bars are and how they showed up in Beechcraft and Piper aircraft, as well. We just sort of assume you have first-hand knowledge of such arcana, but if you’re under 65, it’s an excusable offense, actual parenting and independent study being stealth outlawed since the Johnson (different kind of bars) Administration.]

Kicking the Bucket Work

If you’re following closely, we’ve built the greenhouse, got it to semi-self-watering with rainwater and then damn near fully closed cycle from air conditioner coil water.

But there was still a twice to three times daily emptying of a 2-gallon bucket.  Which demonstrated that a) if not emptied, it would dribble over onto the concrete tiles (greenhouse floor) and b) then spills all over the bucket operator who tries to empty it (barefoot and naked) after two drinks at bedtime.

There had to be a better way.

Out came the old training in TRIZ, the Russian method of Invention.

[Another Newbie Reading Assignment is here – on the workings of TRIZ]

Truth is, for me (*having lived on a 40-foot sailboat for 11-years) there was no TRIZing to it.  I wanted a device that would automatically pump water.  Why, that was like a ….sump pump? No.  Too big, not 12-volt power.

Well, then how about an automatic Bilge pump for a boat then?

You mean like this $38 from Amazon goody?

The Bilge pump has a ground (black) and two “hot leads.”  The blue one is the one you want because there is a float under the blue bottom cover of the bilge pump which turns the pump on when the water gets too high.  The red wire just turns on the pump regardless of water level.  You could set up a momentary contact switch to that off your 12-volt system.  I’m still going to counseling to find out if I am really that paranoid that I want the second switch.

Thing is, when the water level rises (far enough) the pump float comes up, the electricity comes on for the motor, which then sends the excess water up the 1 1/8th inch flex pipe where the outflow goes into the same screened water inlet as the rainwater downspout.  You can see how the cobble-up for testing laid out here:

Oh, it’s a mighty flow and it works dandy.

By like our favorite physicist saysThere’s just one thing…

Namely, when the pump kicks off (when the float runs out of water to float the float switch) that leaves a 39-inch water column in that 1-1/8th inch hose.  And that’s the problem why?

“Can you just get on with it, Old Man?”

NO! I am teaching you about design here, so pay attention to what happens next:  The water column runs backwards, down the hose!

Who gives a shit?”

Well, you should.  Because it will be enough water to refloat the float and turn on the bilge pump again.

Quick, Genius: how do you fix an oscillating water pump which is spazzing out all over the greenhouse floor?

“Put in a different float valve?”

No! (You aren’t thinking in TRIZ mode, yet!)  The easiest solution is a bigger container OR a one-way check valve for 1 1/8th inch hose.  Like this one.

If you check valve doesnt have visible markings on it blow in one end and then the other The end that is easy to blow in goes toward the source bilge in a boat or the greenhouse water holding tank in this episode The end you cant blow in is the outflow end $18 bucks for a pair of them on Amazon<strong> Double clamp yes two clamps slightly offset from one another when doing a marine installation where your live and the boat may depend on quality of workmanship<strong>

In a big ocean sailing machine (like mine) this kind of check valve (but further up the Marine Grade food chain was critical to keeping the outside seawater from running down the bilge pipe when the starboard rail was underwater.

Check valves stop looking overpriced when you’re on the Sausalito Beat in San Francisco with the masthead wind is piping 30-35 knots. A calmer day ride is chronicled here, if you wonder what it’s like “out there.” Inside the Gate where the winds funnel every afternoon, sucked in my rising air inland…sailing stories another time.

Fixing It Right

The First solution is to work the math.

Taking the bottom protective cover (blue) off the bilge pump, we make a few measurements and see if this well-designed solution clicks-on at one level, and then clicks-off about 1/8 to 3/8th’s an inch lower. Maybe a quarter inch?

Next come the calculations (perhaps Sabine could check our work?).

The area of 1 1/8th inch circle is an outside diameter, so we will assume 1 inch inside diameter and toss in a fudge factor (no nuts, please).

Circle area = ? × r² = ? × 0.25 in² ? 0.7854 in²

Hmm… let’s call the diameter 0.9 inches then.

The key design question is: “How much water is in the pipe?”

Water volume: 39″ of column times 0.9 is 35.1 cubic inches.

If we are designing a tub for water that will not cycle, then our minimum size would be:

Min size:  35.1 times 8 (because there are 8 slices of 1/8th inch thick in a one inch of water column, following?

Which means I can order something on Amazon, like these plastic storage tubs which are 18.5″L x 14.4″W x 10.5″H.  Making their area 18.5 times 14.4 (266 square inches) less whatever the displacement footprint of the pump is…

It will be close.  But remember we added some fudge to the 0.7854 area, which could be a working bilge/basin size of 245.04 square inches, so my actual tube may, or may not work (it should).

If the switch dead banding is greater than an eighth of an inch, we are In Like Flynn. At a quarter inch of differential, we can be down to a much smaller intermediate water tank.  But if the wall thickness is less than 1/16th, then we could be wrong the other way.

That’s why the check valve – and to keep outdoor creepy-crawlers from making their way down into the local bilge proxy.

Extra Credit: Using this basic math, and measuring the water precisely, calculate the actual wall thickness of the 1-1/8th inch tubing.  (Childs play for reader-engineers like Al and Art but we won’t disqualify them from entering because they are REAL engineers, and we don’t rule out competence unlike some companies and agencies… let’s not go there.)

See Why Engineering is Fun?

It’s a way of thinking that can be applied to all sorts of home problems.  A few key engineering concepts (vector of force calculations are fun, too!) though the world isn’t totally your oyster, you can still make a big enough, powerful enough, and durable enough machine to move things.

Who was it, said Give me a long enough level and a fulcrum and I will move the world for you?

Answer from AI:  “The Greek philosopher Archimedes is said to have said, “Give me a lever long enough and a fulcrum on which to place it, and I shall move the world”.

One for the Road

Elaine came over to the office Sunday holding the first Texas-Sized Magnolia bloom of the season:  “What do you think?” she asked.

Dang!  Measured a little bit over 10-inches from petal tip to petal tip.

I figure in about another week, maybe two, our little Magnolia will be loaded with blooms, but you can see some of the early bloomers are doing well:

For a second of scale, that bell and holder on the pole, lower left over one of the wireless solar surveillance cams, is about 14-inches tall and the tree is on the far side of the driveway, about 20 feet further back.

Seems like I got the “secret sauce” right this year:  Fertilize in March, let the April monsoons wet it all in, then let’s have a sunny May to drive a great set of blooms this year.

There’s a very weak scent to the Magnolia blossoms.  The Gardenia bush outside the 180-Room?  That one is blooming well, too.  Same fertilizing schedule for both this year.  (SouthernGRO Azaleas, Camellia, Gardenia Fertilizer 04-08-08 – 4lb Bag.)

Nothing like opening a baggy full of fresh gardenia blossoms – stored in the fridge – to have a nice smell to the house with that first cup of wake-up juice.

Of course, if you live in a chicken coop, in town, a spritz of an air freshener and instant coffee just ain’t quite the same… Not Ure fault; maybe you like standing in line for coffee and don’t get downscaling? You will make more money, sure. But no lines around here, except weekends at the Big Box stores when the urbanites come to work on their bug-out joints. Local people are more likely to understand part of time management is looking at a calendar and clock. Just saying…

ShopTalk Sunday from yesterday is in the index here.

Next weekend on “ShopTalk: Instrumentation of Tomatoes!”  as we pull the night shades over the monitor to hide it…
