HamTalk Saturday – Early ShopTalk

Peoplenomics is now up for subscribers, so for the masses, a couple of short, but interesting topics to glom onto.

The Oscilloscope Review II

As I told you recently, I ordered – and had to send back – a Vevor 7 inch LED oscilloscope.  The reason was there was an issue with the upper right corner of the screen and I could not see the entire thing.

With the first unit on its way back Amazon (God, their return policy is great for consumers – here’s hoping they never change it!) I was just going to save some money (or knock over a couple of banks) and get what I really wanted.  On the other hand, “instant gratification” at 75 years of age actually means something.

So, when the Vevor scope came up on Amazon after my return – with a 40 percent off coupon on an already $70 discounted scope, I leaped at it.

The unit showed up a week later and doggonit, same problem.  But not as bad this time. Take a look at this picture and you can see a piece of what looks like screen protector film sticking up:

What was different this time was I could get a small SMD tool under the film and pull it up.  Tah-dah!  The screen in the corner was working in this one.

Check it out:

Now I had a problem:  How often to brand new, 7″ color LED oscilloscopes land on your desk?  Never had the experience before.  Besides, I have a lot of Vevor “stuff” around the ranch.  We have one of their water distillers (works great) and several stainless steel tables, too boot.  They make (or brand) a lot of home products and I’d sure like to see them stay in the electronics space…

On the other hand, there was still the option to save up for a Rigol or even an Oregon blue box, if you follow.  Maybe if I was younger, perhaps…

Grabbing the precision flush cutters I went after the flapping material:

Close enough for home use!

The scope doesn’t come with everything a ham radio sort would want, not the least of which would be a signal generator up to 40 MHz.  A few of the 3-in-1 makers have DDS signal sources going up to 25 MHz, but if you could get something through six meters, say 55 MHz, and something which could at least give an intelligent estimate of RF voltage level, why that’d be the cat’s meow.  But wishing and hoping doesn’t fix gear.

By the way, the manual for all of these scopes (likely single manufacturer, private labeled) seems to be SDS1102.  Thus, it’s very much the same as Owon 1102 ($276) and the Hanmatek 1102 ($169) so for us, including tax, $64 and change was a steal once we figured the screen workaround.

Now, if Vevor would get another scope – but with a 55 MHz DDS tracking generator – if you don’t ask, you won’t get, right?

Practical Bench Layout

When comes to running an orderly electronics bench, reader Hank out on the Big Island has me beat six-ways to Sunday.  I was only an SBE.org member for a couple of years before getting sucked into the on-air side of broadcasting.  Hank’s got the skills to make anything digital play.  Me?  Vacuum tubes are more speed. I’ve resurrected a few Icoms and Ten-Tecs, but for the most part those were board swaps.

The point I’m getting to is that my electronics bench began at a practical size and now with too many tools, it’s an L-shaped monster five-feet on a side. Trust you saw Hank’s meter review recently?  See here and scroll down, if you haven’t.

I think – near as I can estimate – that Hank’s work style is measured, well-paced, and thoughtful.  You know the kind of guy: The sort who lines up the bolts in reverse order as he takes them out.  For some reason, these people are deemed at WMoRR called it “the knack.”

My approach is balls to the wall, grab and do whatever it takes, and only stop for thinking when the bulldozer has come to a stop.  Tools flying, test leads all over hell and gone…yep, that’s our way.

With luck, you will be able to pick and choose – Methodical Hank, Hurricane George, or get The Knack from William.

3- Shop Project Ideas

Too hot and sticky today to do much outside but maybe run the burn barrel for a few loads of cardboard.

But if you don’t even have those chores piled up, how about we look at three very quick and useful projects, right?

Project #1:  Caution Tape

People visiting my shop sometime remark on how “real – like a shop” it looks.  One of the reasons is the liberal application of Caution Tape.  You know the stuff: black and yellow with the yellow set on a 45, right?

The reason for the tape on the miter stand saw stop (and support) is that I have run into that (gd) thing more times than I can remember.  There is something about yellow caution tape that can reduce the risk of injury.

G2 has gone even further.  When people are allowed into his quarters, there’s a four foot square that you’re not allowed step out of without going through decontamination and leaving shoes behind.  That are is marked on the floor with more of this Caution (sometimes called “machine”) tape.

While you are shopping for Caution Tape toss in an industrial first aid kit, N100 masks for serious wood dust, and a few boxes of gloves.  Even if you’re just tossing this on a shelf in the Man Cave, there’s a certain “No shit? This guy must be the real deal…” that goes with having the right stuff.

It’s like the old prop of the Beechcraft over the door to the office.  “Is that a real propeller?”  “Yeah. Want to see the prop log – took it off our plane when it didn’t pass annual…”

Project #2: Safety Rails

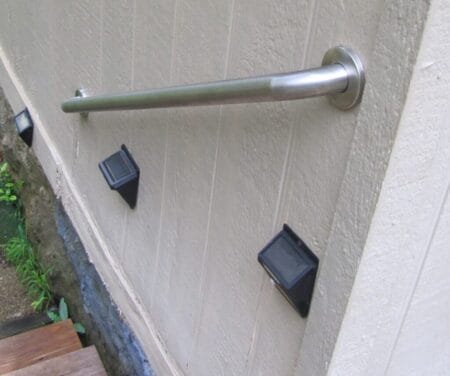

We didn’t go nuts with these, but there are two at my office door, and one in each of the bathrooms. One stepping down into the 180-room for drinks, and of course along the stairways.

A few solar powered lights so you can see where you are going and then going out in 4-5 inches of snow and ice with the idea of going down half a flight of stairs doesn’t sound quite at nutty even if you’re north of 80.

Project #3: Racoon Proofing!

There’s a plastic used for table covers and I got several sheets of it, thinking I would make my own enclosure for a CNC machine.  Of course, 20-minutes later, I have the plastic, but then a premade kit enclosure goes on sale.

But you know what?  This tabletop covering plastic has withstood easty Teas raccoons and possum burglary attempts!

More tomorrow on ShopTalk Sunday (which happens what day, do you suppose?)

Write when you bang something,
